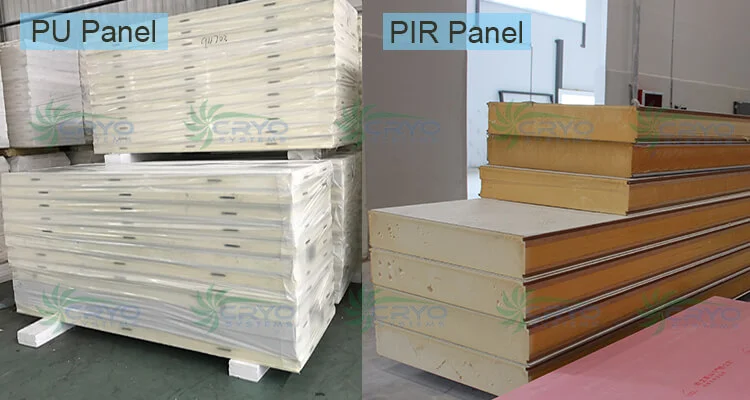

There have two popular types of cold room panels. One is PU panel, another is PIR panel. The differences of these two types are fireproofing grade, cam lock, and installation cost and lifetime. Our PU panel can reach B2 fireproofing grade, with durable zinc-coated cam lock, and 42 kg/m3 high density PU foam, and very easy to install. It can keep cold room lifetime to 20 years at least.
CRYO produce high quality PIR panels and PU panels. 75~200mm PU/PIR panel
Our PU panel foam use polyester that reach B2 fireproof grade. It is difficult to burn and without smoke. While other supplier add fire retardant into PU foam, it will generate smoke when it happen fire.
- Cheap quality, low lifetime. - More noise, more power consumption. - Quality problems keep happening, nightmare!
Panels thickness | heat transfer coefficient (w/m2·k) PU/PIR | Temperature difference inside and outside cold room | Suitable temperature for cold room |
75mm | 0.267/0.3 | 40°C | -5~25°C |
100mm | 0.2/0.23 | 50°C | -15~25°C |
150mm | 0.133/0.15 | 70°C | -25~25°C |
180mm | 0.11/0.125 | 80°C | -35~25°C |
200mm | 0.1/0.113 | 90°C | -50~25°C |

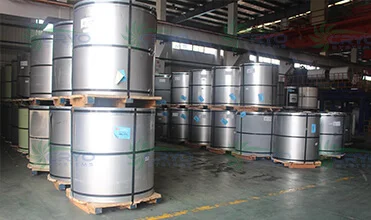

types | Color plate | Baosteeel color plate | Galvanized steel | Aluminum steel | Salinization steel | Stainless Steel 304 |
Steel thickness(mm) | 0.426, 0.476 | 0.5, 0.6 0.8 | 0.8, 1 | 0.7, 0.8 | 0.6 | 0.5, 0.6, 0.7 0.8,1 |
Features | Widely use | Famous brand | More durable | Looks nicer | For seafood | For seafood, medicine |

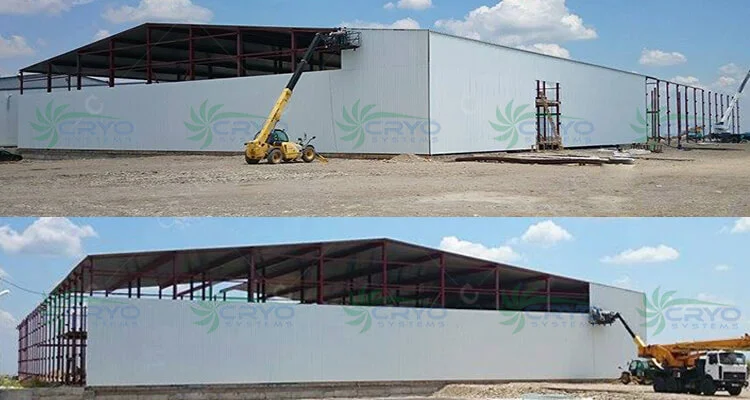

Place: Shanghai, China
Roof/wall Panels: 200mm PIR panels with 0.6mm color palte (Baosteel)
Floor panels: 50mm XPS panels, 4 layers, 350KPA
Temperature: -23C~-25C
Application: cold-chain distribution, logistic refrigeration
What is the thickness of the color plate?
Answer: Bao-steel brand color plate: 0.5mm, 0.6mm, 0.8mm. The Bao-steel brand is the best in China.
Other suppliers may use 0.326mm, and 0.426mm, not the Bao-steel brand, which is too weak.
For PU panels, the higher density the better insulation, right?
Answer: No. The best density is 42kg/m3. We can do the 42kg/m3 to ensure the best insulation.
If PU panel adds flame retardant, what will cause?
Answer: Flame retardant is bad material. It will cause dense smoke and poor insulation.
What is the warranty for the PU panels?
Answer: We can guarantee you 3 years warranty and design the PU panels used for 20 years. Compared with suppliers, some give 1 year warranty, some even have no warranty grantee.
What’s the difference between PIR, PUR and Styrofoam panels?
Click our blog to know more product knowledge of insulated panels.
We accommodate any size of cold room and cater to your unique requirements.
Share your project requirements with us, and we’ll promptly reach out to you. We eagerly anticipate the opportunity to collaborate with you!
